- Powerful ATX 3.0 SFX power supply
- Small size for small pc cases
- 850 Watts nominal power for components in the high-end segment
- With 80 PLUS Platinum certification
- Fully modular cable management with black cables
- Three 6+2-pin PCIe connectors for graphics cards
- 16-pin PCIe 5.0 12VHPWR connector for demanding graphics cards
Powerful SFX power supply with 80 PLUS Platinum efficiency

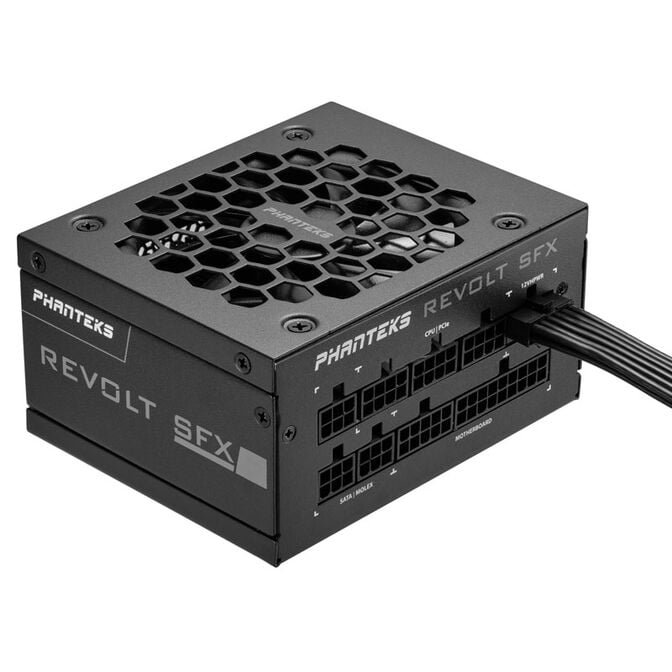

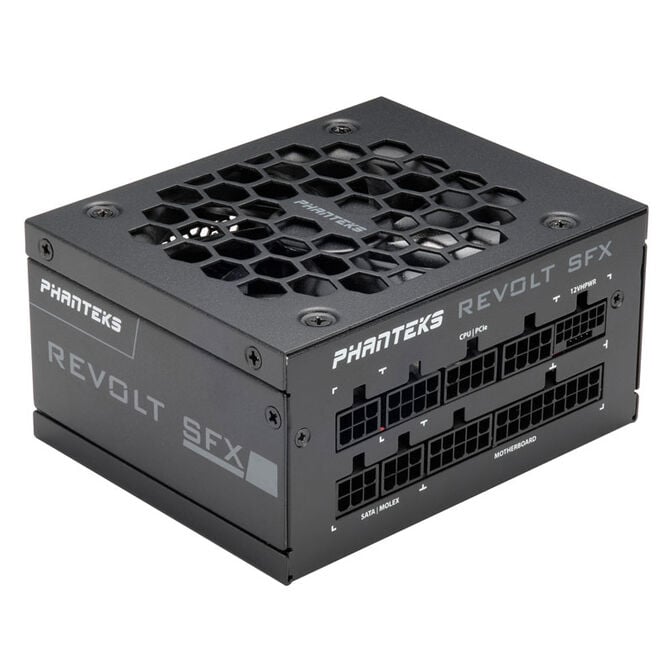

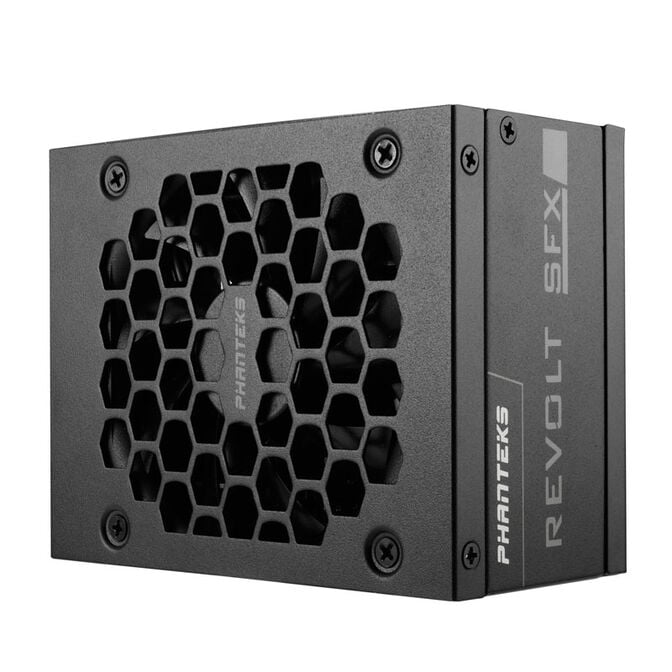

The ATX 3.0 power supply PHANTEKS Revolt SFX 80 PLUS Platinum with its 850 Watt total output is suitable for gaming PCs with high-end components in a small PC case.
Impressive performance

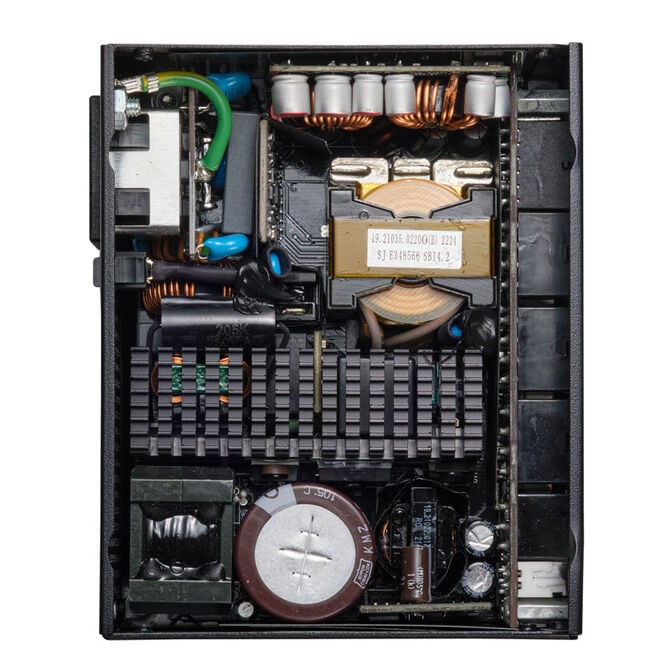

The Revolt SFX 80 PLUS Platinum is extremely efficient, thanks to the use of high-quality electrical components. This is noticeable, among other things, by the fact that high-quality capacitors are installed. The 80 PLUS Platinum certified power supply achieves an efficiency of up to 92% at a load of 50%.

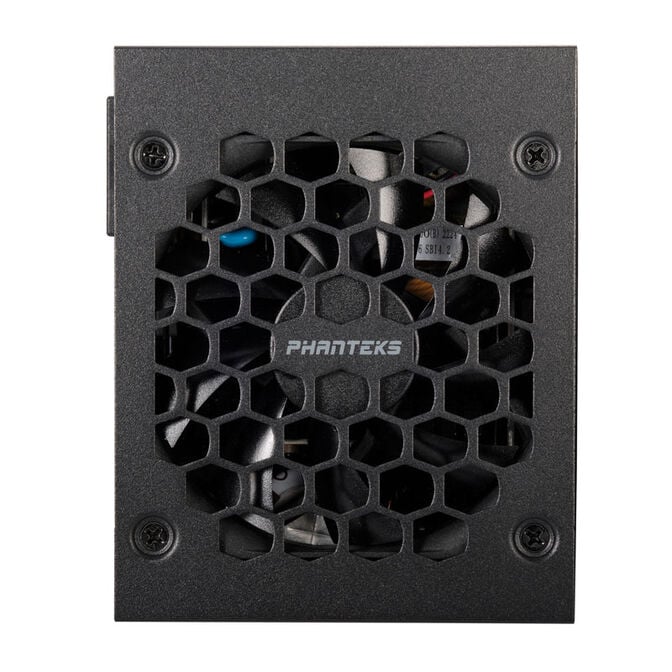

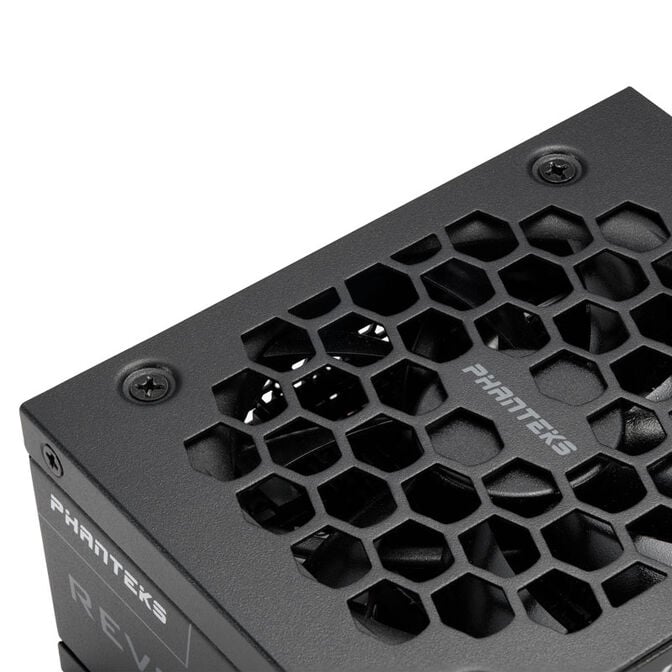

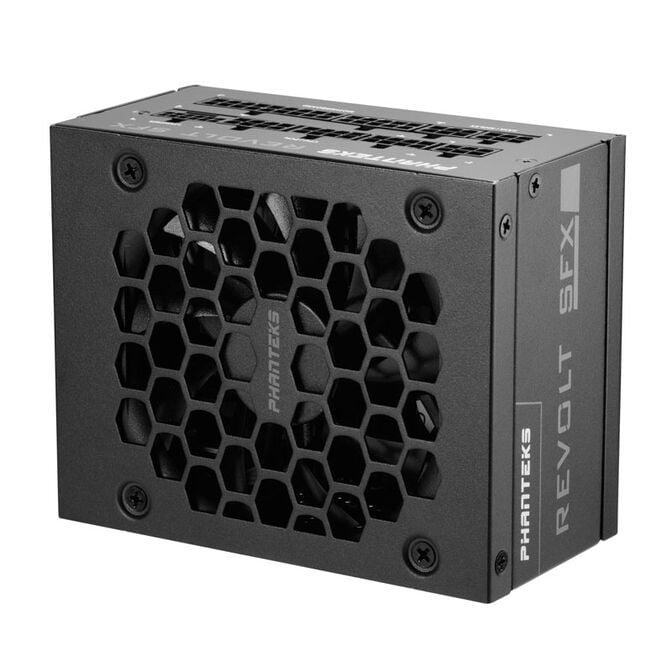

Thanks to the SFX form factor, the power supply is ideally suited for use in small form factor cases. Even with this high performance, the 92 mm fan keeps the Revolt SFX 80 PLUS Platinum at cool operating temperatures even after extensive use. At low loads of up to 30%, the fan remains off, and thus, the power supply is silent.
Extensive connectivity for power-hungry hardware in SFX formats
The PHANTEKS Revolt SFX 80 PLUS Platinum also impresses with its extensive connectivity. In addition to a 24-pin connector and an 8-pin connector for the mainboard and your CPU, there are three 6+2-pin PCIe connectors for graphics cards and a 12VHPWR PCIe 5.0 connectorfor high-end graphics cards. Three 6-pin connectors with cable selection are available on the power supply for drives and other components.
Thanks to modular cable management, you only use the cables that you actually need for your build. This allows you to build particularly tidy setups without unnecessary cables.
Technical details:
- Dimensions: 125 x 63,5 x 100 mm (W x H x D)
- Colour: Black
- Fan: 92 mm (load controlled, hydrodynamic bearing)
- Standard: ATX 3.0
- Efficiency (at least):
~ 92 @ 50 %, 230 V / 50 Hz, 80 PLUS Platinum - Form factor: SFX
- Wattage: 850 W
+3,3 V: 20 A
+5 V: 20 A
+3,3 V and +5 V: 100 W
+12 V: 850 W, 70.8 A
-12 V: 0.3 A, 3.6 W

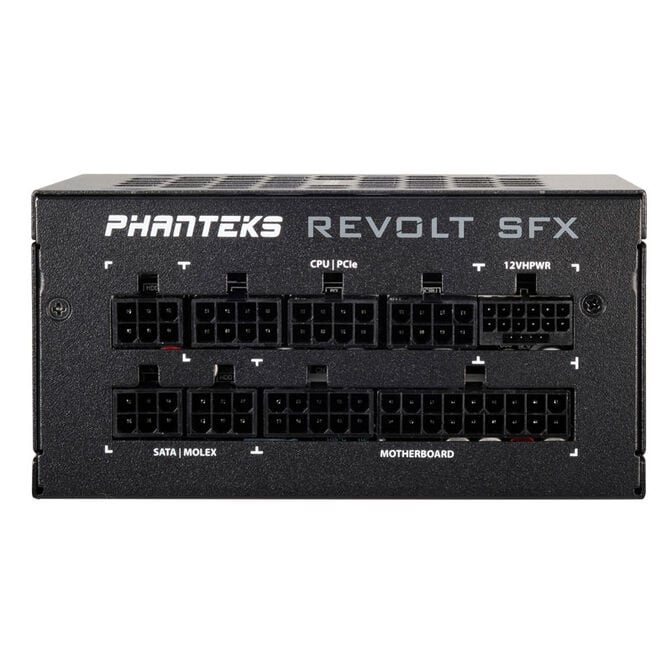

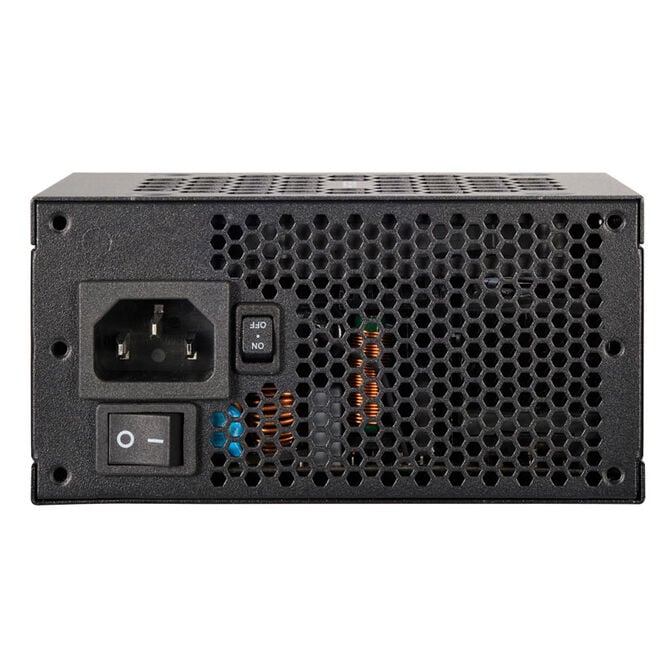

+5 Vsb: 3 A, 15 W - Connectors (Rear):
1x 18+10-Pin Mainboard (24-Pin)
3x 6+2-Pin-PCIe/CPU
1x 16-Pin PCIe 5.0 12VHPWR
3x SATA/Molex - Safeties:
OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection - Included:

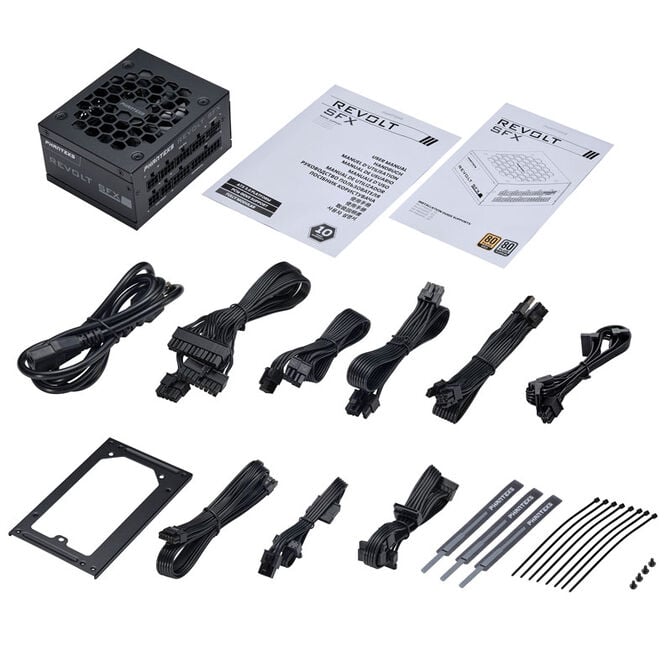

1x PHANTEKS Revolt SFX 80 PLUS Platinum power supply, modular, ATX 3.0 - 850 Watt
1x 18-Pin+10-Pin MB 24P (310 mm)
1x 8-Pin CPU 4+4P (420 mm)
1x 8-Pin PCI-E 6+2P (250 mm)
1x 8-Pin PCI-E 6+2P/6+2P (250 mm Splitter)
1x 16-Pin PCI-E Gen 5.0 (250 mm)
1x 6-Pin 2SATA 90 degree (370 mm-250/120 mm)
1x 6-Pin 4SATA 90 degree (550 mm-250/100/100/100 mm)
1x 6-Pin 3SATA 90 degree + 1 Molex 180 Grad (550 mm-250/100/100/100 mm)
1x Accessories
Colour | |
Primary Colour | Black |
Dimensions | |
Installation depth | 10 cm |
Power Supply | |
PSU format | SFX |
Power Supply Fan | 92 mm |
Modular Power Supply | Yes |
Modular type | fully modular |
Power Specifications | |
Power output 12V rails | 850 W |
Total power output | 850 W |
Cooling | |
Semi Passive Power Supply | No |
Case fan controller | Yes |
Internal Ports | |
CPU Power Supply | 1x 4+4-Pin |
6+2 pin PCIe power connectors | 3 |
SATA power connectors | 3 |
4 pin Molex power connectors | 3 |
Software interface digital | No |
Efficiency Class | |
80PLUS efficiency | 80 PLUS Platinum |
Lighting | |
Lighting | No |
