NVIDIA's GeForce RTX 4000 series graphics cards use a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for power supply. This connector is also referred to as 12VHPWR. CableMod offers the C-Series Pro ModMesh 12VHPWR to 3x PCI-e cable, a 12VHPWR PCIe 5.0 adapter designed for Corsair C-Series Black Label PSUs without a native 12VHPWR connector.
In addition to a 16-pin 12VHPWR to 3x 8-PCIe cable with 16AWG conductors, the kit includes cables for powering the mainboard, SATA devices and for Molex connections. The CableMod C-Series Pro ModMesh 12VHPWR Cable Kit uses a high quality sleeving made of ModMesh. Some cables are equipped with pre-installed, closed cable combs. Further cable combs and a cable shroud are included in the kit.
Important notes: For the 12VHPWR cable to work correctly, all 8-pin connectors must be connected to the power supply. The distance between the connector of the graphics card and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, ensure that the 12+4 pin connector is fully and securely inserted into the socket on the graphics card.Technical Details:
- Colour: Black
- Material: ModMesh

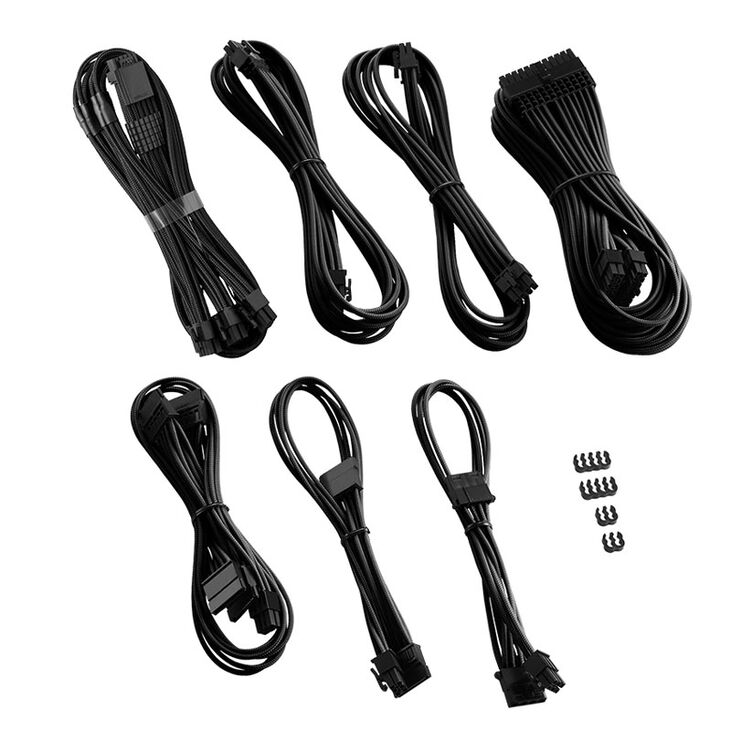

- Included cables:

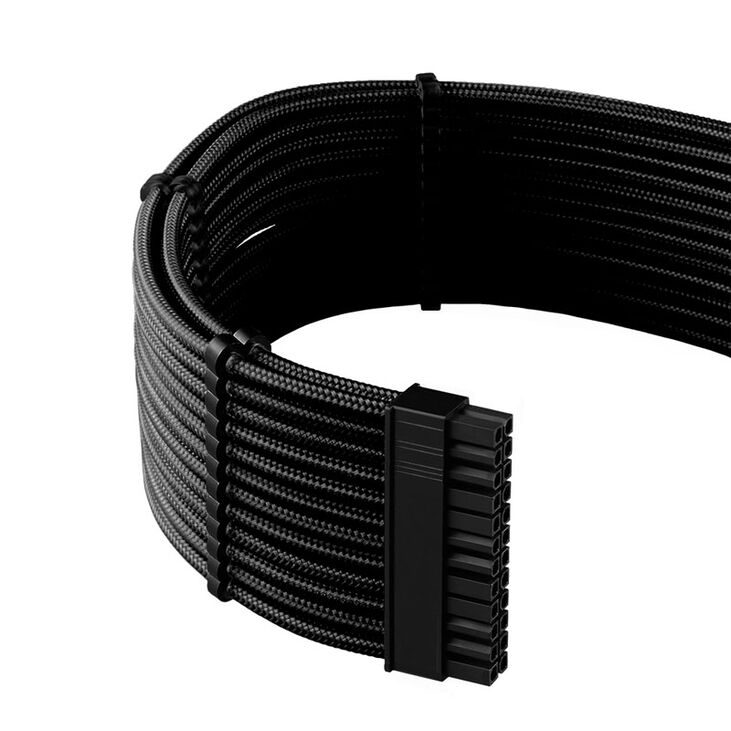

1x 24-Pin ATX cable (60 cm)
1x 8-Pin EPS cable (75 cm)
1x 4+4-Pin EPS cable (75 cm)

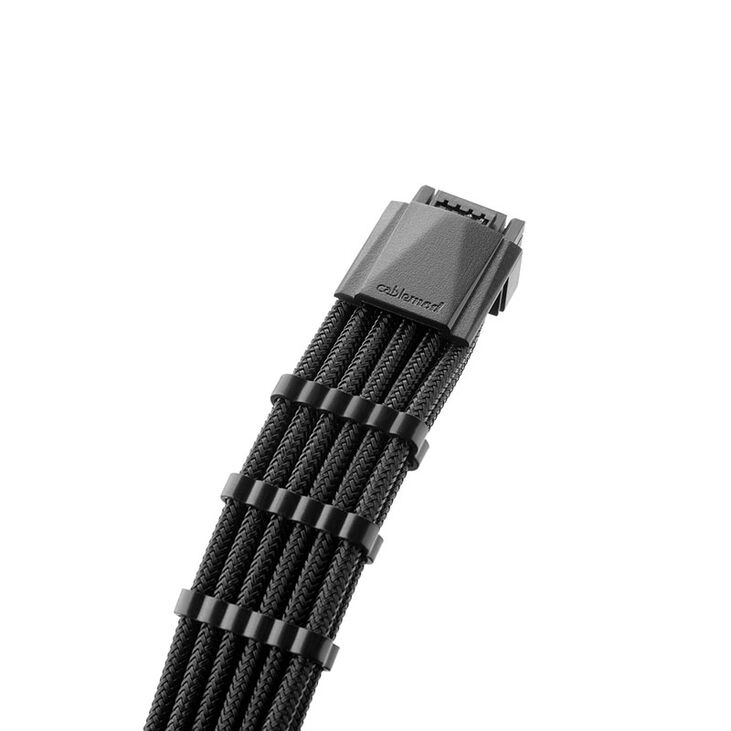

1x 16-Pin to 3x 8-Pin PCI-e cable (60 cm)
1x Quad SATA cable (85 cm)
1x Dual SATA cable (50 cm)
1x Dual Molex cable (50cm) - Accessories:
1x Cable shroud
2x 8-Pin hybrid cable comb
2x 4-Pin hybrid cable comb - Compatibility:
Corsair C-Series RM (Black Label) / RMi / RMx
Colour | |
Main Colour Cable | Black |
Main colour connector / plug | Black |
Cable Specifications | |
Cable Type | cable set |
Shielded Cable | No |
Sleeved Cable | Yes |
Angle | |
Connector angled | No |
Standards / Specifications | |
Standard / specification | PCIe 5.0 |
Connectivity | |
Connector 1 (internal) | ATX (24-Pin) PLUG, EPS12V (4+4-PIN) PLUG, EPS12V (8-Pin) PLUG, Molex large (4-Pin) SOCKET 2x, PCIe (12+4-Pin / 16-Pin) 12VHPWR PLUG, SATA (power) PLUG 2x, SATA (power) PLUG 4x |
Connector 2 (internal) | ATX (24-Pin) SOCKET, ATX/EPS12V (4+4-PIN) SOCKET, EPS12V (8-Pin) SOCKET, Molex large (4-Pin) SOCKET, PCIe (8-Pin) PLUG 3x, SATA (power) SOCKET 2x |
Cable Length | 85 cm |
