be quiet! SFX-L Power 80 PLUS Gold power supply, modular - 600 Watts

be quiet! SFX-L Power 80 PLUS Gold power supply, modular - 600 Watts

Compact SFX-L power supply from be quiet!, 600 Watts total power & 50 A single rail, 80 PLUS Gold certificate, fully modular cable management, 120mm fan, 4x 6+2-pin PCIe / 6x SATA / 3x 4-pin Molex
efficiency label
118,90 €
(incl. VAT)
| sku NEBE-173
| EAN 4260052187135
| MPN BN239
| Manufacturer be quiet!
Pre Order Expected restock at 19.07.2024

With the SFX-L Power Series, manufacturer be quiet! presents a space-saving power supply unit that is the perfect choice for Mini-ITX PCs and compact gaming systems. It offers the ideal combination of quiet operation, functionality, reliability, and efficiency for compact systems with above-average performance. In addition, the power supply unit is equipped with fully modular cable management, allowing its black flat cables to be laid out perfectly.

The be quiet! SFX-L Power 80 PLUS Gold power supply unit at a glance:

  • Compact SFX-L form factor
  • 600 Watts total power
  • Strong single rail with 50 A
  • 80 PLUS Gold certificate
  • Quiet 120-millimetre fan
  • Fully modular cable management
  • 1x 20+4-pin / 1x 4+4-pin / 4x 6+2-pin / 6x SATA / 3x 4-pin Molex

The perfect mix: SFX-L form factor

With the SFX-L Power power supply unit, be quiet! relies on the compact SFX-L form factor, which eliminates one of the few disadvantages of the classic SFX format by slightly increasing the length of the PSU. This measure allows a larger and quieter 120mm fan to fit into the compact power supply unit instead of the often too fast-spinning 80 mm fan. The result is a powerful SFX-L power supply unit with an extremely high continuous power of 600 Watts and a quiet fan that controls its speed depending on the load.

Thanks to the SFX-L format, the SFX-L Power is primarily intended for mini cases, but still stands out due to its extensive range of connections and offers very high performance in minimal dimensions. However, due to its depth of 12.5 cm, compatibility with the desired case must be checked before purchase. The PSU can also be mounted in ATX cases using the included replacement bracket.

Fully modular cable management & 80 PLUS Gold efficiency

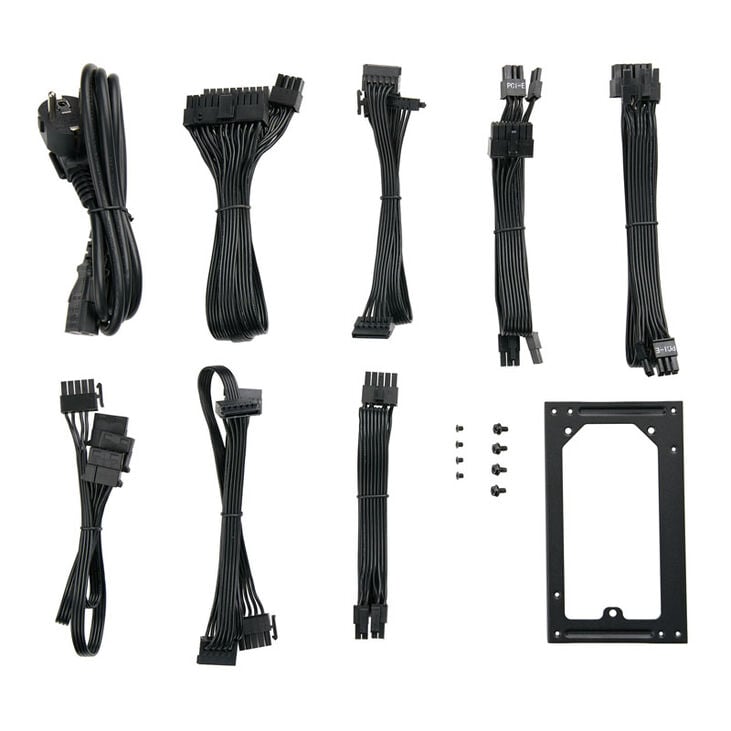

The installation of the power supply unit in small cases is made particularly convenient by the excellent cable management, as the device is fully modular and comes with detachable flat cables for a customised connection setup. The power supply unit's extremely high efficiency of an average of 86.5% - 89.5% has been awarded the 80 PLUS Gold certificate and ensures that only relatively little electrical energy is converted into heat. Instead of a repeatedly split 12V line, this version features a powerful single rail with a strong 50 amperes and offers various protection functions. The individually attachable connections highlight the power of the power supply unit: In addition to 20+4-pin and 4+4-pin connectors, there are even four 6+2-pin PCI Express connectors available. Peripherals such as HDDs or burners are supplied via six SATA connectors and three 4-pin Molex connectors.

  • Dimensions: 130 x 63.5 x 125 mm (W x H x D)
  • Fan: 120mm
  • Efficiency: at least 90/87/87% at 50/20/100% load (115V, efficiency in the European 230-volt network is slightly higher), including 80 PLUS Gold certificate
  • Active PFC
  • Form factor: SFX-L
  • Life expectancy: 100,000 h
  • Noise level: 9.9 / 14.5 / 28.5 dB(A) @ 20 / 50 / 100% load
  • Power: 600 W
    +3.3V: 22 A
    +5V: 22 A
    3.3V+5V: 105 W
    +12V: 50 A (600 W)
    -12V: 0.3 A (3.6 W)
    5VSB: 3 A (15 W)
  • Connections:
    1x 20+4-pin
    1x 4+4-pin
    4x PCIe 6+2-pin
    6x SATA
    3x 4-pin Molex
  • Protection: OPP, OVP, UVP, OCP, OTP, SCP
  • Safety: CE, cTUVus, cRUus, TÜV, Nemko, Semko, Fimko, Demko, RCM, CU, FCC, CB, CCC, BSMI
Colour
Primary Colour Black
Secondary Colour Silver
Dimensions
Width 130 mm
Depth 125 mm
Height 63.5 mm
Installation depth 12.5 cm
Fan Specifications
Fan Size 120 mm
Power Supply
PSU format SFX-L
12V distribution single rail
Power Supply Fan 120 mm
Modular Power Supply Yes
Modular type fully modular
Power Specifications
Power output 12V rails 600 W
Total power output 600 W
Cooling
Semi Passive Power Supply No
Case fan controller No
Internal Ports
CPU Power Supply 1x 4+4-Pin
CPU Power Connectors 12V ATX/EPS 2
6+2 pin PCIe power connectors 4
SATA power connectors 6
4 pin Molex power connectors 3
Software interface digital No
Efficiency Class
80PLUS efficiency 80 PLUS Gold
Lighting
Lighting No
Mod-your-case - be quiet! - SFX L Power 500 Watt
Mod-your-case - be quiet! - SFX L Power 500 Watt

Pro

+ Sehr hochwertige Verarbeitung
+ Stabile Spannungen
+ Vollmodular
+ Anzahl und eingreifen der Schutzschaltungen
+ Lautstärke
+ Schwarze Flachbandkabel

Award
Allround-PC - be quiet! SFX L Power 500W
Allround-PC - be quiet! SFX L Power 500W

Das be quiet! SFX L Power eignet sich bestens für kompakte Gaming-PCs, bei denen Wert auf einen leisen Betrieb gelegt wird. Der leise Betrieb wird durch den 120-mm-Lüfter ermöglicht, der deutlich ruhiger ist als die 80-mm-Lüfter herkömmlicher SFX-Netzteile. Allerdings musste be quiet! das Netzteil etwas länger gestalten, um den Lüfter im Gehäuse unterzukriegen. Daher sollte vor dem Kauf genau abgemessen werden, ob das Gehäuse genug Platz für das Netzteil bietet. Gut gefallen uns zudem die komplett abnehmbaren Kabel, was gerade bei kleinen Gehäusen ein aufgeräumtes Erscheinungsbild begünstigt. Mit insgesamt vier PCIe-Anschlüssen ist zudem problemlos ein Multi-GPU-Setup möglich. Die im Lieferumfang enthaltene ATX-Blende erlaubt außerdem auch den Einsatz in ATX-Gehäusen.

Award
Gamezoom - be quiet! SFX L Power 600W
Gamezoom - be quiet! SFX L Power 600W
Pro

+ sehr gute Leistung
+ moderne und ausgereifte Technik
+ hochwertige Komponenten
+ sehr hoher Wirkungsgrad
+ sämtliche Schutzschaltungen vorhanden
+ Verarbeitungsqualität (Gehäuse)
+ kompakte Bauweise
+ leiser Lüfter
+ ausreichend Anschlüsse
+ abnehmbare Kabelstränge (vollmodular)
+ Länge der Kabel

Award
PC Perspective - BeQuiet! SFX-L 600W Power Supply
PC Perspective - BeQuiet! SFX-L 600W Power Supply

Strengths:
+ 500W and 600W models available
+ Small Form Factor (SFX-L) design
+ Very quiet: 120mm cooling fan with Fluid Dynamic Bearing
+ Good efficiency (80 Plus Gold certified)
+ Very good voltage regulation with low AC ripple (±2%)
+ All Japanese made capacitors
+ All-modular, flat ribbon-style cables
+ Safety Protections: OCP, OVP, UVP, OPP, OTP, and SCP

Award
Hexus - be quiet! SFX L Power 600W PSU
Hexus - be quiet! SFX L Power 600W PSU

Bottom line: the only question you need to ask yourself is whether you actually need a PSU smaller than ATX. If you do, be quiet's SFX L Power is a fine choice for a compact build.

Award
Hardware Info - Be quiet! SFX L Power 500W and 600W power supply
Hardware Info - Be quiet! SFX L Power 500W and 600W power supply

With the SFX L Power 500 and 600, Be quiet provides two excellent SFX L power supplies that are perfectly suited to build a powerful PC within a compact housing. Please note that the AFX L is a power supply that is 13 cm deep instead of 10 cm deep. This will not be a problem with most ITX enclosures. We can be brief about the performance of both power supplies: they are fine in all areas, without dropping at any point. In terms of price, be quiet watt-voor-watt is at the same level as qualitatively comparable competition.

Award
Computerbase - be quiet! SFX L Power 500W
Computerbase - be quiet! SFX L Power 500W

+ Überdurchschnittlicher Wirkungsgrad nach 80Plus Gold
+ Sehr leise bei kleiner Last
+ FDB-Lüfter
+ Volle Leistung bei 50 °C
+ Vollmodulares Kabelmanagement
+ Vollständige Schutzschaltungen
+ SFX-Format mit 130-mm-Tiefe
+ Hohe Bauteilgüte
+ Viele Anschlüsse
+ Sehr gute elektrische Messwerte
+ Drei Jahre Garantie

Award
Hardwareluxx - be quiet! SFX L Power 500W
Hardwareluxx - be quiet! SFX L Power 500W

Positive Punkte bei dem be quiet! SFX L Power 500W

+ gute Leistungsfähigkeit
+ stabile Ausgangsspannungen, niedrige Ripple-/Noise-Spannungen
+ solide 80PLUS-Gold-Effizienz
+ sehr leise bei niedriger bis mittlerer Last
+ sehr gute Ausstattung (4x PCI-Express, 6x SATA, 3x Molex) mit voll-modularem Kabelmanagement
+ qualitativ gute Komponenten
+ funktionierende Schutzschaltungen

Award
