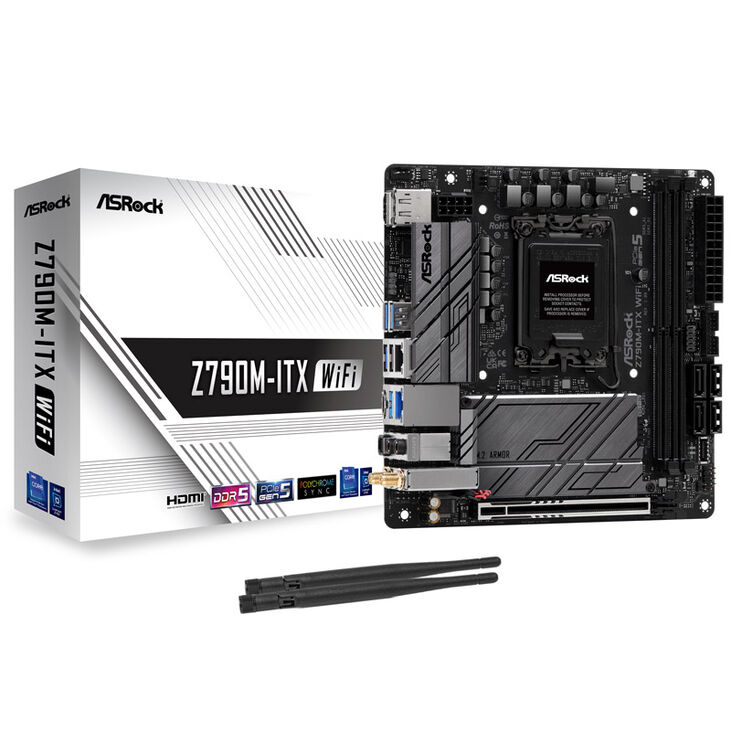

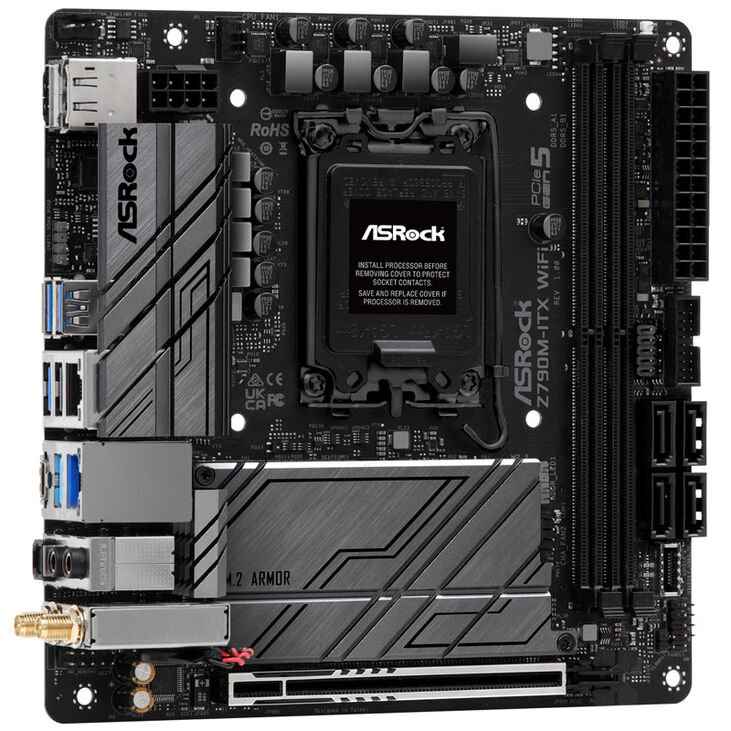

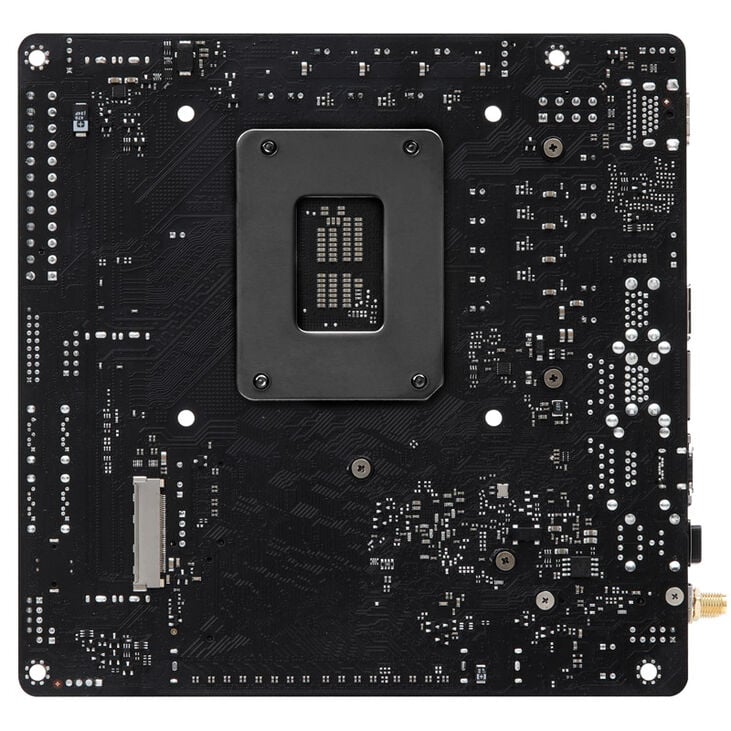

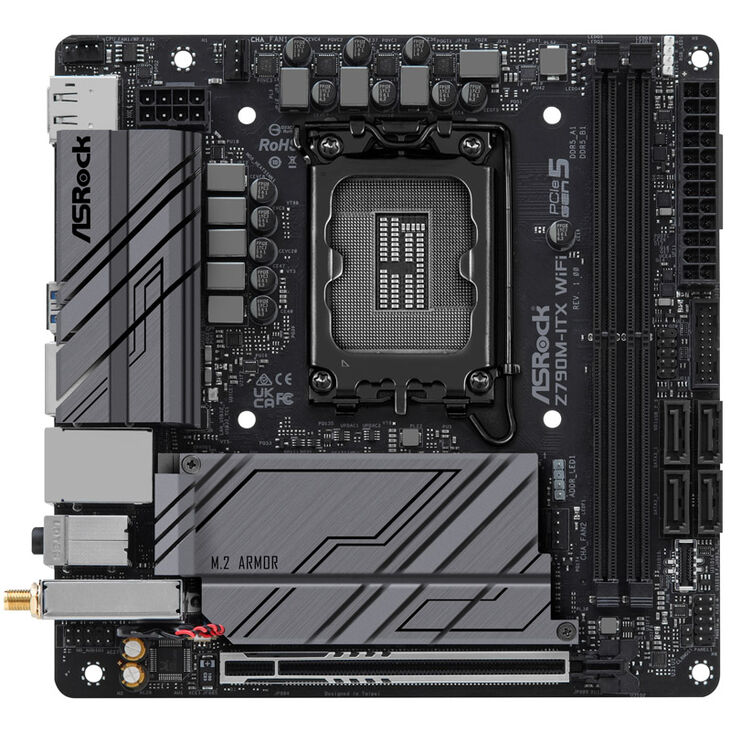

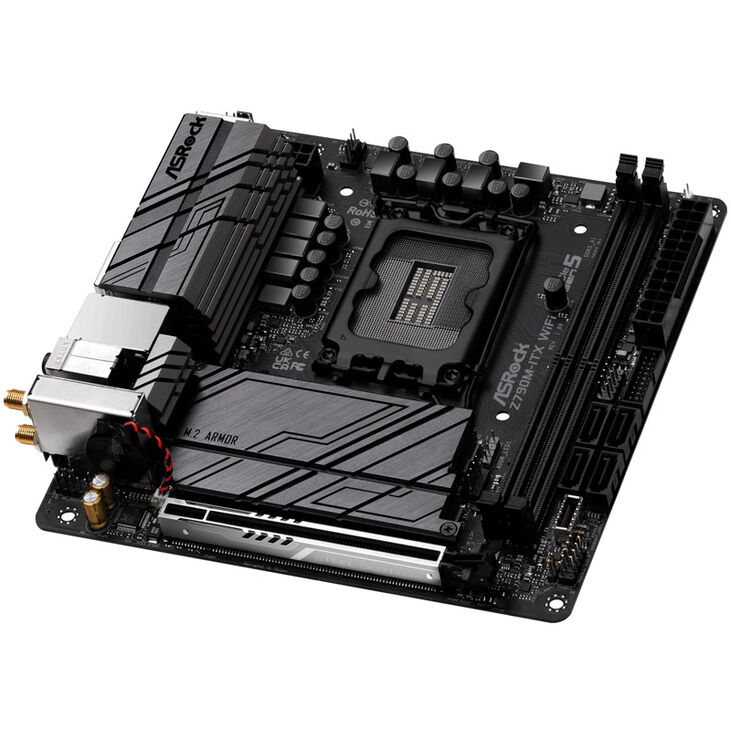

ASRock Z790M-ITX WIFI, Intel Z790 motherboard - Socket 1700, DDR5
Mini-ITX motherboard with Z790 chipset, 1x PCIe 5.0 x16, 2x USB-C 3.2 / 4x USB-A 3.1 / 2x USB-A 3.0, 2x M.2 (2x PCIe 4.0) / 3x SATA 6G, 3x 4-pin PWM connectors, for DDR5 RAM
232,90 €
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length | 17 cm |
| Width | 17 cm |
| Form Factor | |
| Motherboard formfactor | Mini-ITX |
| CPU | |
| CPU Manufacturer | Intel |
| CPU Socket | 1700 |
| Motherboard | |
| Motherboard Chipset | Intel Z790 |
| Memory | |
| Memory Type | DDR5 |
| Max. Memory | 64 GB |
| Memory slots | 2x |
| WiFi & LAN | |
| LAN ports | 1x 1 Gbit/s, 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| RGB / LED connectors | 1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB) |
| USB 3.0 / 3.1 / 3.2 (internal) Type C | 2 |
| USB 3.0 (internal) | 2 |
| USB 2.0 (internal) | 1 |

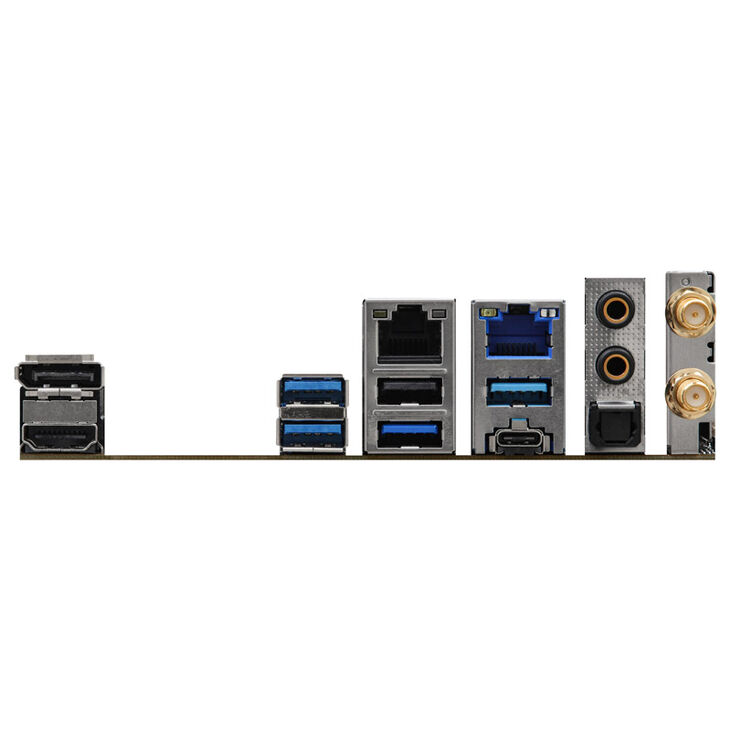

| External Ports | |
| USB 3.2 (external) Type C | 1 |
| USB 3.1 (external) Type A | 4 |
| USB 2.0 (external) Type A | 1 |
| Display Connectors | Display Port, HDMI |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 2 |
| M.2 PCIe 4.0 x4 & SATA 6G | 1 |
| SATA 6G (internal) | 3 |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe 5.0 x16 mechanical slot | 1 |
| Fan Header | |
| 4 pin fan connectors | 3 |
| Audio | |
| Soundchip | Realtek ALC897 |
| Lighting | |
| Lighting | No |
