The AMD Ryzen 5 5500 supports the PCI Express 3.0 standard. All Ryzen 5000 processors use the AM4 platform and were developed for use on AMD X570, X470, X370, B550, B450, B350, and A520 chipsets. The prerequisite is an update to BIOS version AGESA 1.2.0.6b or newer.
The AMD Ryzen 5 5500 at a Glance:
![AMD Ryzen 5](https://www.caseking.de/on/demandware.static/-/Sites-master-catalog-caseking/default/dw6b1b1c45/images/media/image/thumbnail/hpam-234_hpam_234_02_800x800.jpg)
- Six "Zen 3" cores with just 65 watts Thermal Design Power (TDP)
- 12 threads thanks to Simultaneous Multithreading (SMT)
- Very high single and multi-threadperformance
- Base clock of 3.6 GHz and 4.2 GHz Turbo with Precision Boost 2
- Fast PCI Express 3.0 interface
- Auto overclocking Precision Boost Overdrive
- Free multiplier for manual overclocking (unlocked CPU)
- Large cache memory: 3 MB L2 and 16 MB L3
- High-efficiency, non-planar 7 nm FinFET transistors
- AVX2 instruction set extension for complex vector calculations
- Two AES units for fast, reliable data encryption
- Compatible with the AMD AM4 processor socket
- Supports native DDR4 RAM at 3,200 MHz (dual-channel)

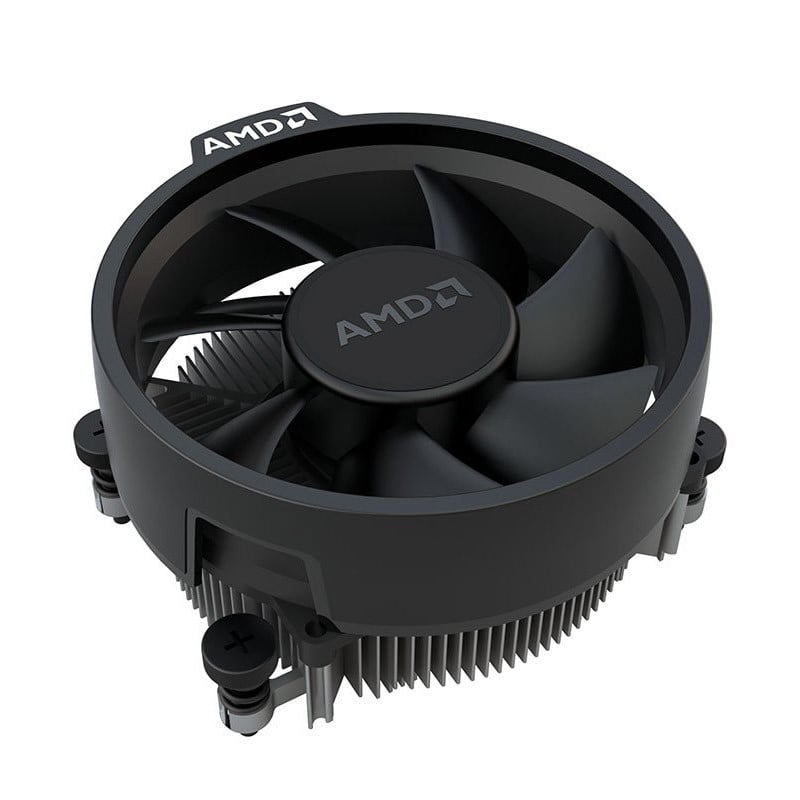

- Includes AMD Wraith Stealth CPU cooler!
The AMD Ryzen 5 5500G 6 Core CPU with 4,2 GHz Precision Boost 2
![AMD Ryzen 5 5500 Box](https://www.caseking.de/on/demandware.static/-/Sites-master-catalog-caseking/default/dw892e2851/images/media/image/thumbnail/hpam-234_hpam_234_01_800x800.jpg)
The silicon of the CPU cores is lithographed using the advanced 7nm FinFET manufacturing process with stacked transistors (also called 3D transistors) using Extreme Ultraviolet (EUV) technology. The space on the processor die gained by the greatly reduced structure sizes enables the integration of a total of 3 MB level 2 cache and 16 MB level 3 cache, which are particularly important for games.
The I/O chiplet in the CPU package responsible for the data lines is produced using 12 nm FinFET fabrication and provides 24 PCIe lanes, of which four lanes each are reserved for connection to the mainboard chipset and for connecting NVMe SSDs. This leaves 16 lanes for communication with graphics cards, while additional PCIe lanes are provided for other storage devices, expansion cards and peripherals depending on the motherboard chipset.
.PCI-Express 3.0 with AMD Chipsets
![AMD Ryzen 5 Box](https://www.caseking.de/on/demandware.static/-/Sites-master-catalog-caseking/default/dw22afe3b3/images/media/image/thumbnail/hpam-234_hpam_234_04_800x800.jpg)
The AM4 platform also features external device connections such as USB 3.1 with Type A and/or Type C connectors and high data transfer rates of up to 10 Gbps. The CPU's integrated memory controller supports fast and energy-efficient DDR4 RAM in dual-channel mode without ECC error correction at a native clock frequency of 3,200 MHz, with significantly higher clock rates possible through overclocking.
Automatic overclocking with Precision Boost Overdrive
![Precision Boost Overdrive](https://www.caseking.de/on/demandware.static/-/Sites-master-catalog-caseking/default/dw88cde7dd/images/media/image/precision_boost_overdrive.jpg)
Unlocked CPU: Manual overclocking thanks to free multiplier
Technical Details:
- Type:
AMD Ryzen 5 5500
Zen 3 / Cezanne
Manufacturing: 7 nm FinFET - CPU cores: 6 / 12 (physical / virtual)
- CPU clock:
Base clock: 3.6 GHz
Boost clock: max. 4.2 GHz (Precision Boost 2)
Precision Boost Overdrive: +200 MHz Auto-OC - Level 2 cache: 3 MB (6x 512 kB)
- Level 3 cache: 16 MB (1x 16 MB)
- Chipset interface: PCI-Express 3.0
- Integrated PCI-Express lanes: x24 (x16 for GPU + x4 for SSD + x4 for chipset)
- Memory:
Memory controller: internal
Memory channels: 2
Memory standard: DDR4 (non-ECC)
native memory clock: 3,200 MHz (without OC) - TDP: 65 Watt
- Socket compatibility: AM4
- Features and instruction set enhancements:
PCI-Express 3.0
Precision Boost 2 (Precision Boost Overdrive with AMD X570 or B550)
SMT (Simultaneous Multithreading)
X86-64 (64-bit processor AMD64)
AMD-V (Compute Virtualisation)
VT-Vi (I/O MMU Virtualisation)
2x AES units (encryption)
AVX and AVX2 (Advanced Vector Extensions)
NX-Bit (virus protection) and EVP (advanced virus protection)
Turbo Core 3.0 Free multiplier (unlocked) With AMD Wraith Stealth CPU cooler
CPU | |
CPU Manufacturer | AMD |
CPU Series | AMD Ryzen 5 |
CPU Socket | AM4 |
CPU Architecture | AMD Cezanne |
CPU Cores | 6 |
CPU Threads | 12 |
Hyperthreading / Multithreading | Yes |
Open Multiplier | Yes |
Memory Controller | dual channel |
CPU Cooler Included | Yes |
CPU Packaging | boxed / retail |
Memory | |
Memory Type | DDR4 |
Thermal Specifications | |
Max. TDP | 65 W |
